RIFLE BEARING FAN
The rifle bearing fan offers a longer lifespan while providing better noise reduction for consistent, reliable cooling.
*All performance stats confirmed in 25°C ambient temperature testing.
$42.56
Original: $121.59
-65%ELITE GOLD 850 FM A/EU cord—
$121.59
$42.56The Story
ESSENTIAL GOLD POWER FOR EVERYDAY GAMING BUILDS
Cooler Master Elite Gold 850 is designed for reliable everyday gaming builds. With full ATX 3.1 and PCIe 5.1 support, it ensures stable performance and compatibility with the latest and upcoming mid-range GPUs. Offering 80 Plus Gold efficiency, dependable operation at up to 40°C, and a quiet rifle bearing fan, it delivers efficient and quiet power. A compact 140mm form factor makes installation easy across a wide range of cases, while fully modular embossed cables simplify cable management. Backed by a 5-year warranty, the Elite Gold 850 provides lasting confidence and stability for your system.
HIGH TEMPERATURE RESILIENCE
Operates reliably at up to 40°C, perfect for extended gaming, rendering, and overclocking.
Compatible with ATX 3.1 and PCIe Gen 5.1
ATX 3.1 delivers tighter voltage and current regulation with peak power support up to 200% of its rated output, making the Elite Gold 850 ready for the latest and upcoming mid-range GPUs.
*All performance stats confirmed in 25°C ambient temperature testing.
80 PLUS GOLD CERTIFIED EFFICIENCY
Cooler Master Elite Gold 850 achieves over 90% efficiency at typical loads, helping reduce energy waste and minimize heat generation.
*All performance stats confirmed in 25°C ambient temperature testing.
COMPACT FORM FACTOR
Unlike typical high-wattage PSUs that extend beyond 150mm, the Elite Gold’s compact design at 150mm or less ensures easy installation across a wide range of cases, making it ideal for space-conscious PC builds.

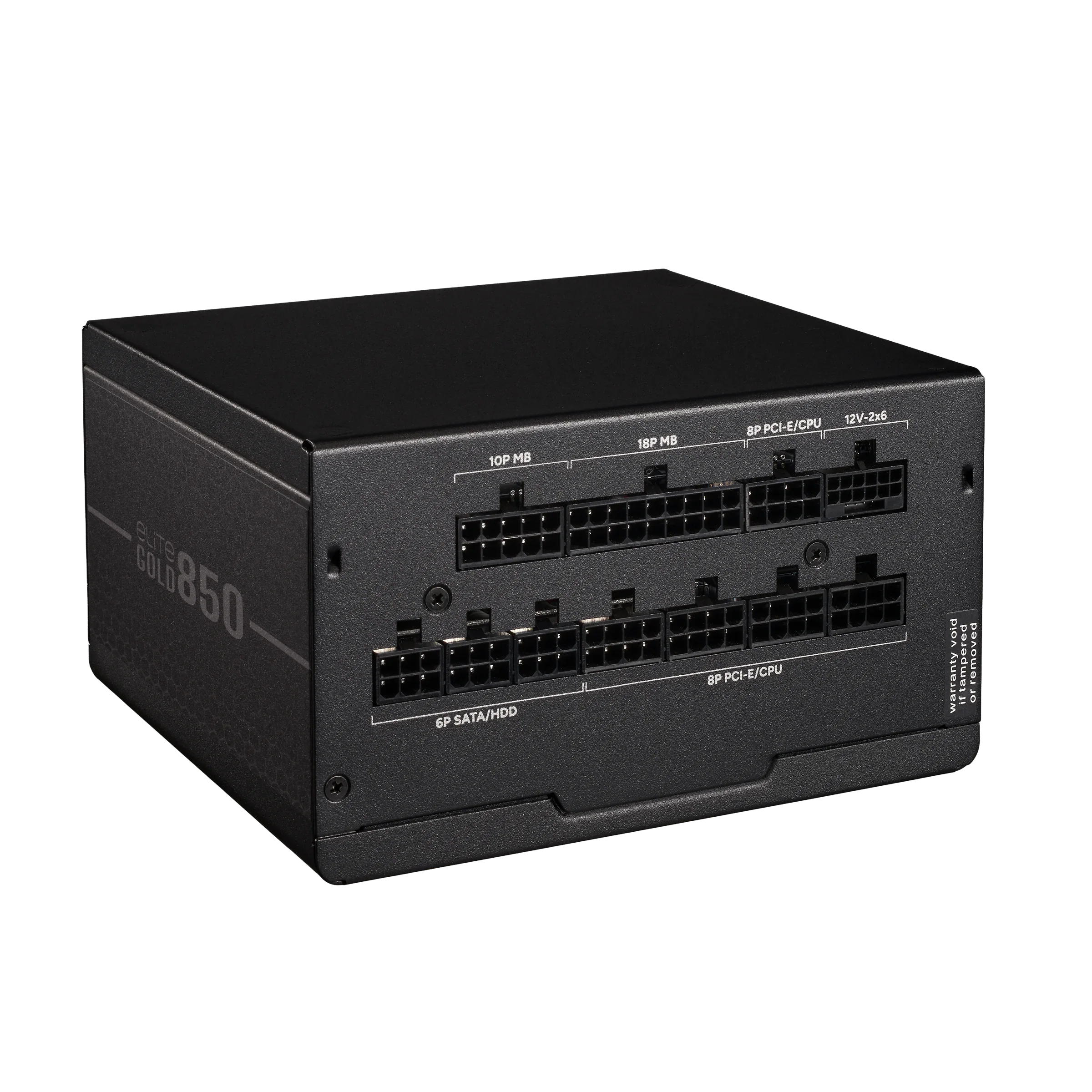

Fully Modular Embossed Cable Design
The fully modular design comes with flat black cables that can be tailored to each build, offering enhanced grip and a premium look for easier management and a cleaner overall setup.
*All performance stats confirmed in 25°C ambient temperature testing.
Specifications
-

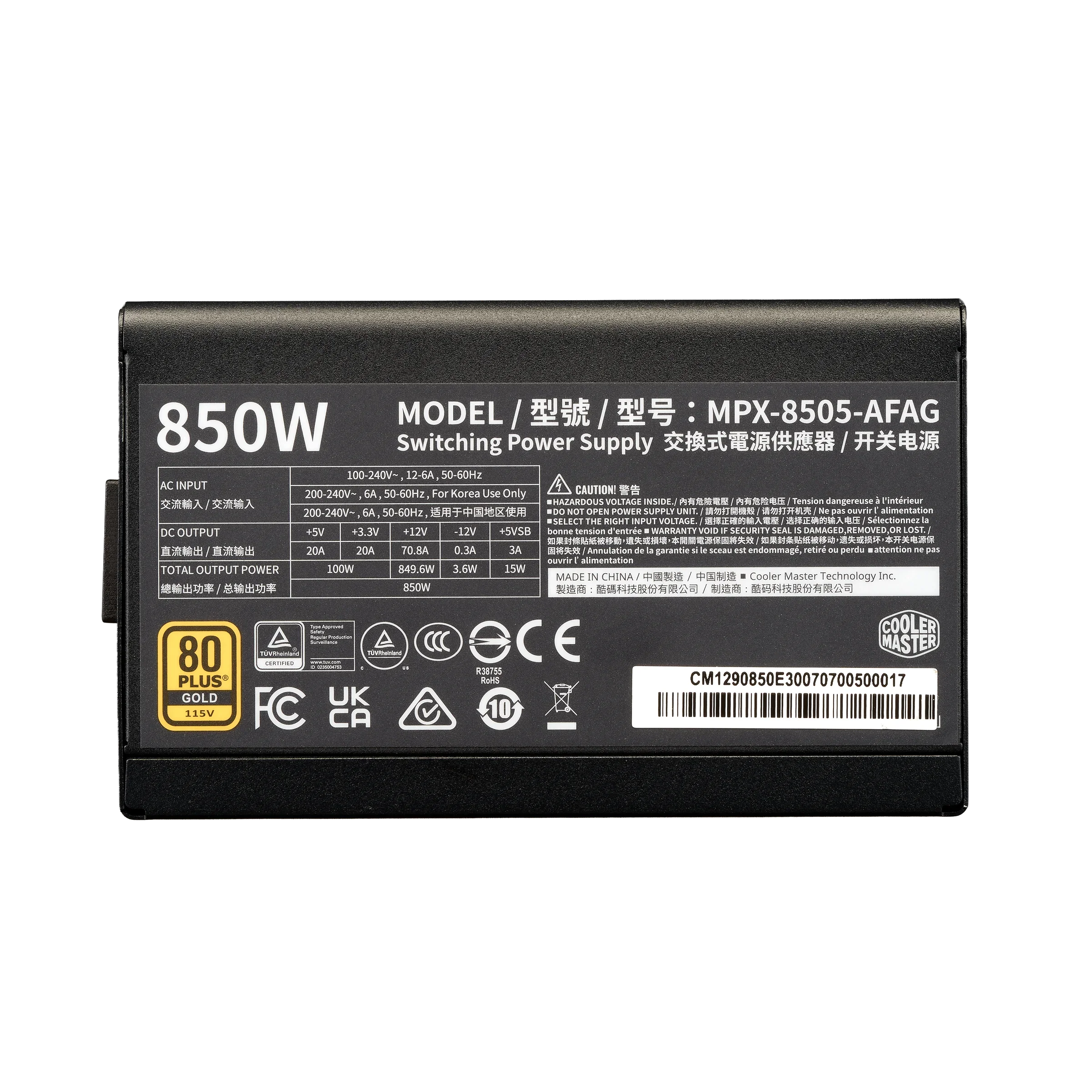

Product Name: ELITE GOLD 850
- Model: MPX-8505-AFAG-BEU
- ATX Version: ATX 12V Ver. 3.1
- Active PFC
- Input Voltage: 100-240V
- Input Current: 6 ~ 12A
- Input Frequency: 50-60Hz
- Dimensions (L x W x H): 140 x 150 x 86 mm
- Fan Size: 120mm
- Fan Bearing: Rifle bearing
- Efficiency: ≥90% @ Typical Load
- 80 PLUS Rating: 80 PLUS Gold
- ErP 2014 Lot 3: Yes
- Operating Temperature: 0-40°C
- Power Good Signal: 100 - 150 ms
- Hold Up Time: ≥ 11ms @ 100% Load
- MTBF: >100,000 hours @ 25℃ ambient
- Protections: UVP / OVP / OPP / OTP / SCP
- Regulatory: cTUV us, CB, CE, FCC, BSMI, CCC, RCM, UKCA, BIS, RoHS2.0
- ATX 24 Pin Connectors: x1 = 1 (550mm)
- EPS 4+4 Pin Connectors: x1 = 1 (600mm)
- EPS 8 Pin Connector: x1 = 1 (600mm)
- SATA & Peripheral 4 Pin Connectors: X4(s) + x2(p) = 2 [400(s)+120(s)+120(p) mm]
- PCI-e 6+2 Pin Connectors: x3 = 1 (500+120mm), 1 (500mm)
- 12+4 Pin Connectors: x1 = 1 (650mm)
- Elite Series
- Form Factor: ATX
- Watts: 850W
- Fully Modular
- 80 Plus Efficiency Gold
- Warranty: 10 Years
Downloads
- Product SheetDownload
- Product Sheet - Japanese EditionDownload
- ManualDownload
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
ESSENTIAL GOLD POWER FOR EVERYDAY GAMING BUILDS
Cooler Master Elite Gold 850 is designed for reliable everyday gaming builds. With full ATX 3.1 and PCIe 5.1 support, it ensures stable performance and compatibility with the latest and upcoming mid-range GPUs. Offering 80 Plus Gold efficiency, dependable operation at up to 40°C, and a quiet rifle bearing fan, it delivers efficient and quiet power. A compact 140mm form factor makes installation easy across a wide range of cases, while fully modular embossed cables simplify cable management. Backed by a 5-year warranty, the Elite Gold 850 provides lasting confidence and stability for your system.
HIGH TEMPERATURE RESILIENCE
Operates reliably at up to 40°C, perfect for extended gaming, rendering, and overclocking.
Compatible with ATX 3.1 and PCIe Gen 5.1
ATX 3.1 delivers tighter voltage and current regulation with peak power support up to 200% of its rated output, making the Elite Gold 850 ready for the latest and upcoming mid-range GPUs.
*All performance stats confirmed in 25°C ambient temperature testing.
RIFLE BEARING FAN
The rifle bearing fan offers a longer lifespan while providing better noise reduction for consistent, reliable cooling.
*All performance stats confirmed in 25°C ambient temperature testing.
80 PLUS GOLD CERTIFIED EFFICIENCY
Cooler Master Elite Gold 850 achieves over 90% efficiency at typical loads, helping reduce energy waste and minimize heat generation.
*All performance stats confirmed in 25°C ambient temperature testing.
COMPACT FORM FACTOR
Unlike typical high-wattage PSUs that extend beyond 150mm, the Elite Gold’s compact design at 150mm or less ensures easy installation across a wide range of cases, making it ideal for space-conscious PC builds.
Fully Modular Embossed Cable Design
The fully modular design comes with flat black cables that can be tailored to each build, offering enhanced grip and a premium look for easier management and a cleaner overall setup.
*All performance stats confirmed in 25°C ambient temperature testing.
Specifications
-
Product Name: ELITE GOLD 850
- Model: MPX-8505-AFAG-BEU
- ATX Version: ATX 12V Ver. 3.1
- Active PFC
- Input Voltage: 100-240V
- Input Current: 6 ~ 12A
- Input Frequency: 50-60Hz
- Dimensions (L x W x H): 140 x 150 x 86 mm
- Fan Size: 120mm
- Fan Bearing: Rifle bearing
- Efficiency: ≥90% @ Typical Load
- 80 PLUS Rating: 80 PLUS Gold
- ErP 2014 Lot 3: Yes
- Operating Temperature: 0-40°C
- Power Good Signal: 100 - 150 ms
- Hold Up Time: ≥ 11ms @ 100% Load
- MTBF: >100,000 hours @ 25℃ ambient
- Protections: UVP / OVP / OPP / OTP / SCP
- Regulatory: cTUV us, CB, CE, FCC, BSMI, CCC, RCM, UKCA, BIS, RoHS2.0
- ATX 24 Pin Connectors: x1 = 1 (550mm)
- EPS 4+4 Pin Connectors: x1 = 1 (600mm)
- EPS 8 Pin Connector: x1 = 1 (600mm)
- SATA & Peripheral 4 Pin Connectors: X4(s) + x2(p) = 2 [400(s)+120(s)+120(p) mm]
- PCI-e 6+2 Pin Connectors: x3 = 1 (500+120mm), 1 (500mm)
- 12+4 Pin Connectors: x1 = 1 (650mm)
- Elite Series
- Form Factor: ATX
- Watts: 850W
- Fully Modular
- 80 Plus Efficiency Gold
- Warranty: 10 Years
Downloads
- Product SheetDownload
- Product Sheet - Japanese EditionDownload
- ManualDownload
