ELITE Gold 1200 FM A/EU cord
HomeStore

ELITE Gold 1200 FM A/EU cord

ELITE Gold 1200 FM A/EU cord

$55.76

Original: $159.30

-65%
ELITE Gold 1200 FM A/EU cord

$159.30

$55.76

The Story

 Supports ATX 3.1 and PCIe Gen 5.1 standards

 Ideal for RTX 50 GPUs

 Stable performance under high loads at up to 40°C

 Quiet, long-life FDB fan cooling

 1200W output with 80 Plus Gold-certified efficiency

 Fully modular embossed cable design

 Reliable 10-year warranty

HIGH-POWER GOLD PERFORMANCE FOR GAMING AND WORKSTATIONS

Cooler Master Elite Gold 1200 powers high-end gaming rigs and professional systems with ATX 3.1 support - ideal for RTX 50 GPUs. It offers 80 Plus Gold efficiency, reliable operation up to 40°C, quiet FDB cooling, embossed modular cables, dual EPS connectors, and a 5-year warranty for dependable, high-load performance.

High Temperature Resilience

Operates reliably at up to 40°C, making it ideal for extended gaming sessions, professional rendering, and sustained high-load workloads—all without sacrificing stability or efficiency.


Compatible with ATX 3.1 and PCIe Gen 5.1 standards

ATX 3.1 provides tighter voltage and current regulation, supporting up to 200% peak power. The Elite Gold 1200 meets full ATX 3.1 specs and supports PCIe Gen 5.1 for stable next-gen performance with RTX 50 GPUs and future high-power cards.

*All performance stats confirmed in 25°C ambient temperature testing.

QUIET FDB FAN

Fluid Dynamic Bearing fan ensures long-lasting, stable, and quiet cooling. Fan speed adjusts automatically based on power and stops when the system is idle or under low load (below 30%).

*All performance stats confirmed in 25°C ambient temperature testing.


80 PLUS GOLD CERTIFIED EFFICIENCY

Cooler Master Elite Gold 1200 achieves over 90% efficiency at typical loads, reducing energy waste and heat output.

*All performance stats confirmed in 25°C ambient temperature testing.


Fully Modular Embossed Cable Design

The fully modular design comes with flat black cables that can be tailored to each build, offering improved grip and a premium look for easier management and a cleaner overall setup.

*All performance stats confirmed in 25°C ambient temperature testing.

Specifications

  • ELITE GOLD 1200
  • MPW-C001-AFAG-BEU
  • ATX Version: ATX 12V Ver. 3.1
  • PFC: Active PFC
  • Input Voltage: 100-240V
  • Input Current: 7.5 ~ 15A
  • Input Frequency: 50-60Hz
  • Dimensions (L x W x H): 150 x 150 x 86 mm
  • Fan Size: 135mm
  • Fan Bearing: FDB
  • Efficiency: ≥90% @ Typical Load
  • 80 PLUS Rating: 80 PLUS Gold
  • ErP 2014 Lot 3: Yes
  • Operating Temperature: 0-40°C
  • Power Good Signal: 100 - 150 ms
  • Hold Up Time: ≥16ms at 80% Load
  • MTBF: >100,000 hours @ 25℃ ambient
  • Protections: UVP / OVP / OPP / OTP / SCP
  • Regulatory: cTUV us, CB, CE, FCC, BSMI, EAC, RCM, UKCA, RoHS2.0 , REACH
  • ATX 24 Pin Connectors: x1 = 1 (600mm)
  • EPS 4+4 Pin Connectors: x2 = 2 (700mm)
  • SATA Connectors: x9 = 3 (500+100+100mm)
  • Peripheral 4 Pin Connectors: x3 = 1 (500+100+100mm)
  • PCI-e 6+2 Pin Connectors: x6 = 3 (550+120mm)
  • 12+4 Pin Connectors: x1 = 1 (600mm)
  • Elite Series
  • Form Factor: ATX
  • Watts: 1200W
  • Fully Modular
  • 80 Plus Efficiency Gold
  • Warranty: 10 Years

Downloads

  • Product SheetDownload
  • ManualDownload
ELITE Gold 1200 FM A/EU cord - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

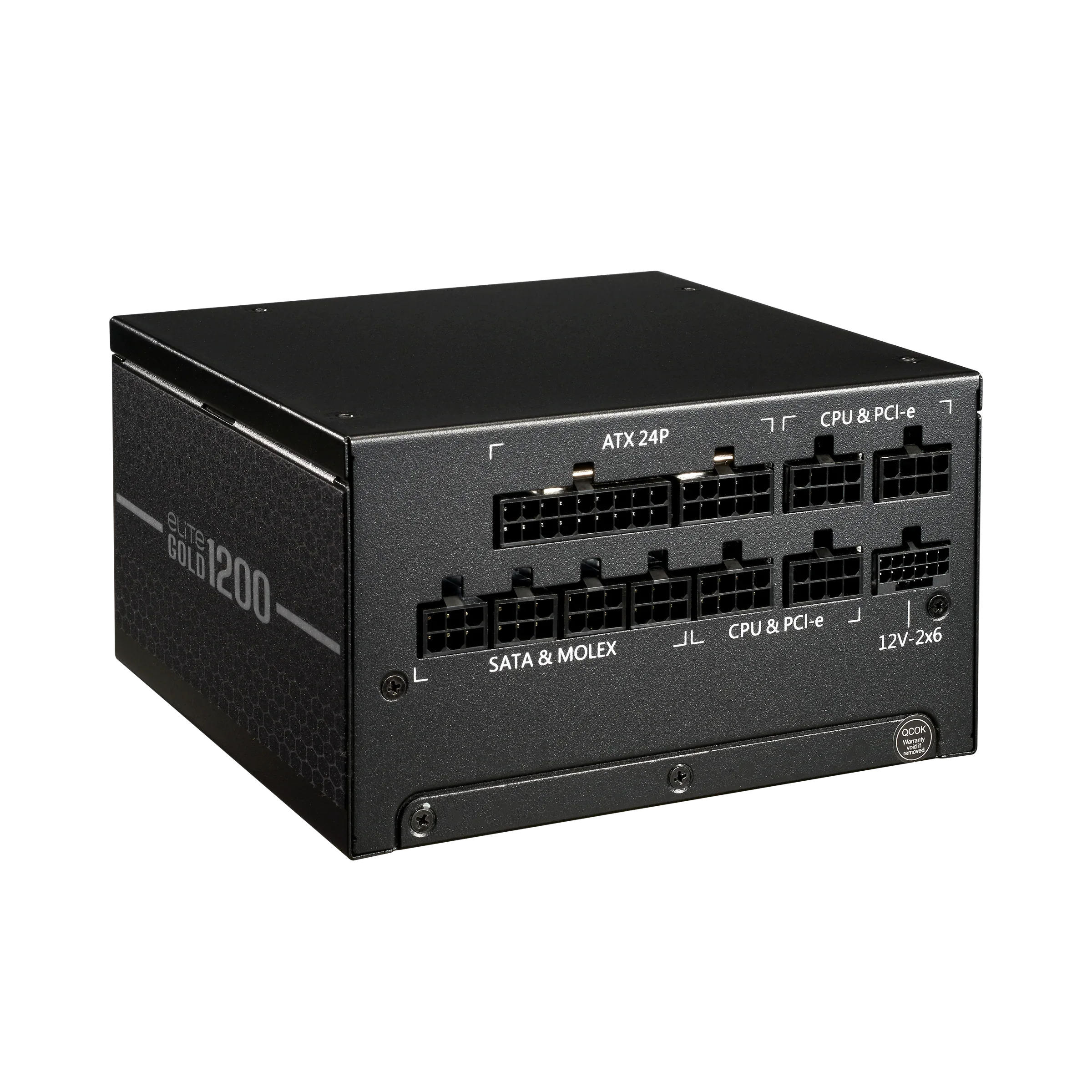

ELITE Gold 1200 FM A/EU cord - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

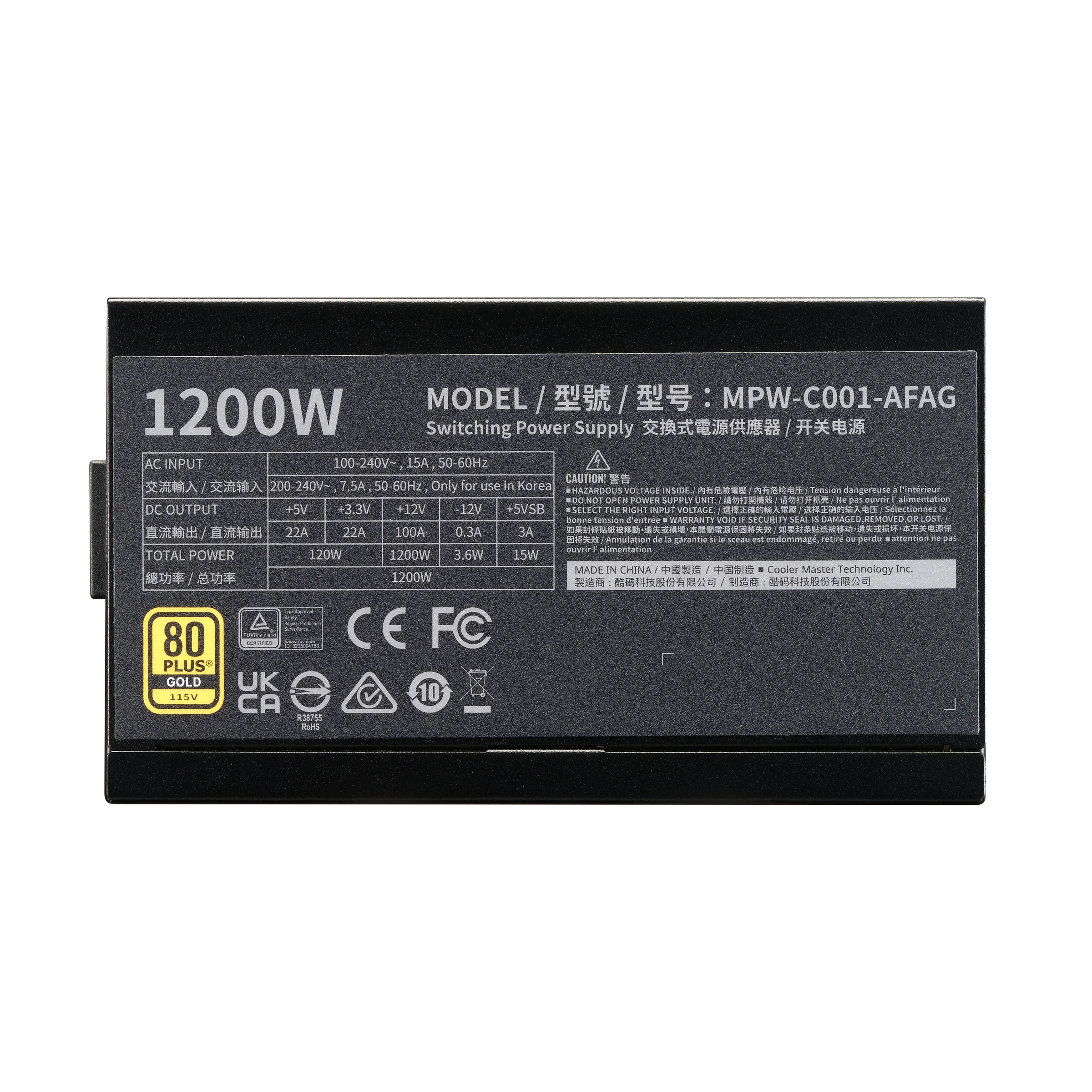

ELITE Gold 1200 FM A/EU cord - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

 Supports ATX 3.1 and PCIe Gen 5.1 standards

 Ideal for RTX 50 GPUs

 Stable performance under high loads at up to 40°C

 Quiet, long-life FDB fan cooling

 1200W output with 80 Plus Gold-certified efficiency

 Fully modular embossed cable design

 Reliable 10-year warranty

HIGH-POWER GOLD PERFORMANCE FOR GAMING AND WORKSTATIONS

Cooler Master Elite Gold 1200 powers high-end gaming rigs and professional systems with ATX 3.1 support - ideal for RTX 50 GPUs. It offers 80 Plus Gold efficiency, reliable operation up to 40°C, quiet FDB cooling, embossed modular cables, dual EPS connectors, and a 5-year warranty for dependable, high-load performance.

High Temperature Resilience

Operates reliably at up to 40°C, making it ideal for extended gaming sessions, professional rendering, and sustained high-load workloads—all without sacrificing stability or efficiency.


Compatible with ATX 3.1 and PCIe Gen 5.1 standards

ATX 3.1 provides tighter voltage and current regulation, supporting up to 200% peak power. The Elite Gold 1200 meets full ATX 3.1 specs and supports PCIe Gen 5.1 for stable next-gen performance with RTX 50 GPUs and future high-power cards.

*All performance stats confirmed in 25°C ambient temperature testing.

QUIET FDB FAN

Fluid Dynamic Bearing fan ensures long-lasting, stable, and quiet cooling. Fan speed adjusts automatically based on power and stops when the system is idle or under low load (below 30%).

*All performance stats confirmed in 25°C ambient temperature testing.


80 PLUS GOLD CERTIFIED EFFICIENCY

Cooler Master Elite Gold 1200 achieves over 90% efficiency at typical loads, reducing energy waste and heat output.

*All performance stats confirmed in 25°C ambient temperature testing.


Fully Modular Embossed Cable Design

The fully modular design comes with flat black cables that can be tailored to each build, offering improved grip and a premium look for easier management and a cleaner overall setup.

*All performance stats confirmed in 25°C ambient temperature testing.

Specifications

  • ELITE GOLD 1200
  • MPW-C001-AFAG-BEU
  • ATX Version: ATX 12V Ver. 3.1
  • PFC: Active PFC
  • Input Voltage: 100-240V
  • Input Current: 7.5 ~ 15A
  • Input Frequency: 50-60Hz
  • Dimensions (L x W x H): 150 x 150 x 86 mm
  • Fan Size: 135mm
  • Fan Bearing: FDB
  • Efficiency: ≥90% @ Typical Load
  • 80 PLUS Rating: 80 PLUS Gold
  • ErP 2014 Lot 3: Yes
  • Operating Temperature: 0-40°C
  • Power Good Signal: 100 - 150 ms
  • Hold Up Time: ≥16ms at 80% Load
  • MTBF: >100,000 hours @ 25℃ ambient
  • Protections: UVP / OVP / OPP / OTP / SCP
  • Regulatory: cTUV us, CB, CE, FCC, BSMI, EAC, RCM, UKCA, RoHS2.0 , REACH
  • ATX 24 Pin Connectors: x1 = 1 (600mm)
  • EPS 4+4 Pin Connectors: x2 = 2 (700mm)
  • SATA Connectors: x9 = 3 (500+100+100mm)
  • Peripheral 4 Pin Connectors: x3 = 1 (500+100+100mm)
  • PCI-e 6+2 Pin Connectors: x6 = 3 (550+120mm)
  • 12+4 Pin Connectors: x1 = 1 (600mm)
  • Elite Series
  • Form Factor: ATX
  • Watts: 1200W
  • Fully Modular
  • 80 Plus Efficiency Gold
  • Warranty: 10 Years

Downloads

  • Product SheetDownload
  • ManualDownload
