QUIET FDB FAN
The Fluid Dynamic Bearing (FDB) fan delivers stable, long-lasting, and whisper-quiet cooling performance.
*All performance stats confirmed in 25°C ambient temperature testing.
$49.15
Original: $140.44
-65%Elite Gold 1000 FM A/EU cord—
$140.44
$49.15The Story
• Supports ATX 3.1 and PCIe Gen 5.1 standards
• Ideal for RTX 50 GPUs
• Stable performance under high loads at up to 40°C
• Quiet, long-life FDB fan cooling
• 1000W output with 80 Plus Gold-certified efficiency
• Fully modular embossed cable design
• Reliable 10-year warranty
ESSENTIAL GOLD POWER FOR EVERYDAY GAMING BUILDS
Cooler Master Elite Gold 1000 is designed for everyday gaming and first-time builds. With full ATX 3.1 compliance support, it's ready for RTX 50 GPUs and future upgrades. Enjoy 80 Plus Gold efficiency, reliable up to 40°C operation, and quiet FDB fan cooling. Fully modular embossed cables simplify installation, dual EPS connectors provide wide compatibility, and a 5-year warranty ensures long-term confidence and reliability.
High Temperature Resilience
Operates reliably at up to 40°C, perfect for extended gaming, rendering, and overclocking.
COMPATIBLE WITH ATX 3.1 AND PCIE GEN 5.1
ATX 3.1 delivers tighter voltage and current regulation with peak power support up to 200% of rated output. Elite Gold 1000 meets the full spec and supports PCIe Gen 5.1 for stable, next-gen performance with RTX 50 GPUs and future high-power cards.
*All performance stats confirmed in 25°C ambient temperature testing.
80 PLUS GOLD CERTIFIED EFFICIENCY
Cooler Master Elite Gold 1000 achieves over 90% efficiency at typical loads, helping reduce energy waste and minimize heat generation.
*All performance stats confirmed in 25°C ambient temperature testing.

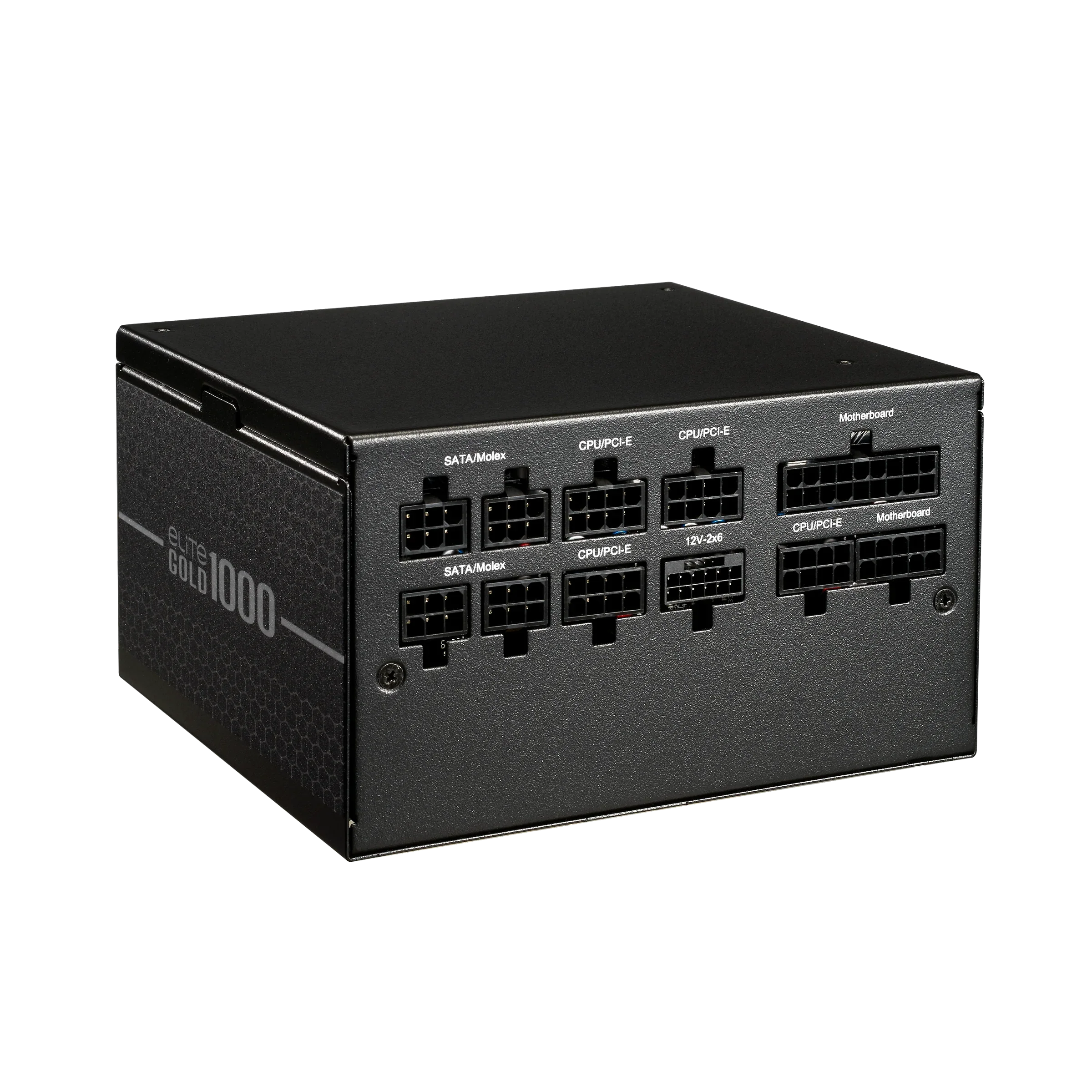

Fully Modular Embossed Cable Design
The fully modular design comes with flat black cables that can be tailored to each build, offering enhanced grip and a premium look for easier management and a cleaner overall setup.
*All performance stats confirmed in 25°C ambient temperature testing.
Specifications
- Product Name: ELITE GOLD 1000
- Model: MPW-A001-AFAG
- ATX Version: ATX 12V Ver. 3.1
- PFC: Active PFC
- Input Voltage: 100-240V
- Input Current: 6 ~ 12A
- Input Frequency: 50-60Hz
- Dimensions (L x W x H): 140 x 150 x 86 mm
- Fan Size: 120mm
- Fan Bearing: FDB
- Efficiency: ≥90% @ Typical Load
- 80 PLUS Rating: 80 PLUS Gold
- ErP 2014 Lot 3: Yes
- Operating Temperature: 0-40°C
- Power Good Signal: 100 - 150 ms
- Hold Up Time: ≥16ms at 80% Load
- MTBF: >100,000 hours @ 25℃ ambient
- Protections: UVP / OVP / OPP / OTP / SCP
- Regulatory: cTUV us, CB, CE, FCC, BSMI, EAC, RCM, UKCA, RoHS2.0 , REACH
- ATX 24 Pin Connectors: x1 = 1 (600mm)
- EPS 4+4 Pin Connectors: x2 = 2 (700mm)
- SATA Connectors: x9 = 3 (500+100+100mm)
- Peripheral 4 Pin Connectors: x3 = 1 (500+100+100mm)
- PCI-e 6+2 Pin Connectors: x6 = 3 (550+120mm)
- 12+4 Pin Connectors: x1 = 1 (600mm)
- Elite Series
- Form Factor: ATX
- Watts: 1000W
- Fully Modular
- 80 Plus Efficiency Gold
- Warranty: 10 Years
Downloads
- Product SheetDownload
- ManualDownload
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
• Supports ATX 3.1 and PCIe Gen 5.1 standards
• Ideal for RTX 50 GPUs
• Stable performance under high loads at up to 40°C
• Quiet, long-life FDB fan cooling
• 1000W output with 80 Plus Gold-certified efficiency
• Fully modular embossed cable design
• Reliable 10-year warranty
ESSENTIAL GOLD POWER FOR EVERYDAY GAMING BUILDS
Cooler Master Elite Gold 1000 is designed for everyday gaming and first-time builds. With full ATX 3.1 compliance support, it's ready for RTX 50 GPUs and future upgrades. Enjoy 80 Plus Gold efficiency, reliable up to 40°C operation, and quiet FDB fan cooling. Fully modular embossed cables simplify installation, dual EPS connectors provide wide compatibility, and a 5-year warranty ensures long-term confidence and reliability.
High Temperature Resilience
Operates reliably at up to 40°C, perfect for extended gaming, rendering, and overclocking.
COMPATIBLE WITH ATX 3.1 AND PCIE GEN 5.1
ATX 3.1 delivers tighter voltage and current regulation with peak power support up to 200% of rated output. Elite Gold 1000 meets the full spec and supports PCIe Gen 5.1 for stable, next-gen performance with RTX 50 GPUs and future high-power cards.
*All performance stats confirmed in 25°C ambient temperature testing.
QUIET FDB FAN
The Fluid Dynamic Bearing (FDB) fan delivers stable, long-lasting, and whisper-quiet cooling performance.
*All performance stats confirmed in 25°C ambient temperature testing.
80 PLUS GOLD CERTIFIED EFFICIENCY
Cooler Master Elite Gold 1000 achieves over 90% efficiency at typical loads, helping reduce energy waste and minimize heat generation.
*All performance stats confirmed in 25°C ambient temperature testing.
Fully Modular Embossed Cable Design
The fully modular design comes with flat black cables that can be tailored to each build, offering enhanced grip and a premium look for easier management and a cleaner overall setup.
*All performance stats confirmed in 25°C ambient temperature testing.
Specifications
- Product Name: ELITE GOLD 1000
- Model: MPW-A001-AFAG
- ATX Version: ATX 12V Ver. 3.1
- PFC: Active PFC
- Input Voltage: 100-240V
- Input Current: 6 ~ 12A
- Input Frequency: 50-60Hz
- Dimensions (L x W x H): 140 x 150 x 86 mm
- Fan Size: 120mm
- Fan Bearing: FDB
- Efficiency: ≥90% @ Typical Load
- 80 PLUS Rating: 80 PLUS Gold
- ErP 2014 Lot 3: Yes
- Operating Temperature: 0-40°C
- Power Good Signal: 100 - 150 ms
- Hold Up Time: ≥16ms at 80% Load
- MTBF: >100,000 hours @ 25℃ ambient
- Protections: UVP / OVP / OPP / OTP / SCP
- Regulatory: cTUV us, CB, CE, FCC, BSMI, EAC, RCM, UKCA, RoHS2.0 , REACH
- ATX 24 Pin Connectors: x1 = 1 (600mm)
- EPS 4+4 Pin Connectors: x2 = 2 (700mm)
- SATA Connectors: x9 = 3 (500+100+100mm)
- Peripheral 4 Pin Connectors: x3 = 1 (500+100+100mm)
- PCI-e 6+2 Pin Connectors: x6 = 3 (550+120mm)
- 12+4 Pin Connectors: x1 = 1 (600mm)
- Elite Series
- Form Factor: ATX
- Watts: 1000W
- Fully Modular
- 80 Plus Efficiency Gold
- Warranty: 10 Years
Downloads
- Product SheetDownload
- ManualDownload
