MasterFrame 360 Series

Cooler Master MasterFrame 360 extends the FreeForm 2.0 design philosophy into a visual-first, showcase-ready platform. Featuring Cooler Master’s signature aluminum exo-structure and a new central cable management chamber, it delivers clean builds that put hardware center stage. Available in three distinct models — PANORAMA, STAGE LCD, and STAGE MIRROR — the 360 series offers creators a refined platform to build, express, and be seen.

The PC is no longer just a machine — it’s a statement.

Massive Cooling Compatibility

Supports fan sizes ranging from 120 mm to 200 mm, with space for up to twelve 120 mm fans—six on the top and six on the bottom. It also supports radiators up to 360 mm, meeting the cooling demands of high-end custom liquid cooling setups.

Wide Component Compatibility

Accommodates up to 430 mm GPUs and 210 mm PSUs built to handle flagship components without compromise. Also compatible with Mini-ITX, Micro-ATX, and ATX motherboards, including BTF (back-connect) layouts within the ATX form factor.Features 110 mm of cable routing clearance for a clean and clutter-free showcase.

ENCLOSED & OPEN

ENCLOSED DESIGN

Features a three-sided tempered glass panoramic structure that provides excellent visual transparency, allowing a full view of the internal setup. Compared with the Stage’s open design, its full-cover glass enclosure not only enhances the display effect (for figures, models, or water-cooling systems) but also offers dust and touch protection. It’s a practical design that balances aesthetic presentation and functional protection.

OPEN DESIGN

Features an open layout that’s ideal for displaying articulated figures that are frequently handled or posed. It’s also perfect for figures with extended parts such as long weapons or wings that go beyond the chassis frame, offering minimal spatial limitations.

MasterFrame 360 Stage LCD - LCD Screen User Manual

PCIe 5.0 Riser Cable Included

Includes a premium PCIe 5.0 riser cable that enables vertical GPU mounting providing both next-gen performance and an elevated presentation right out of the box.

Specifications

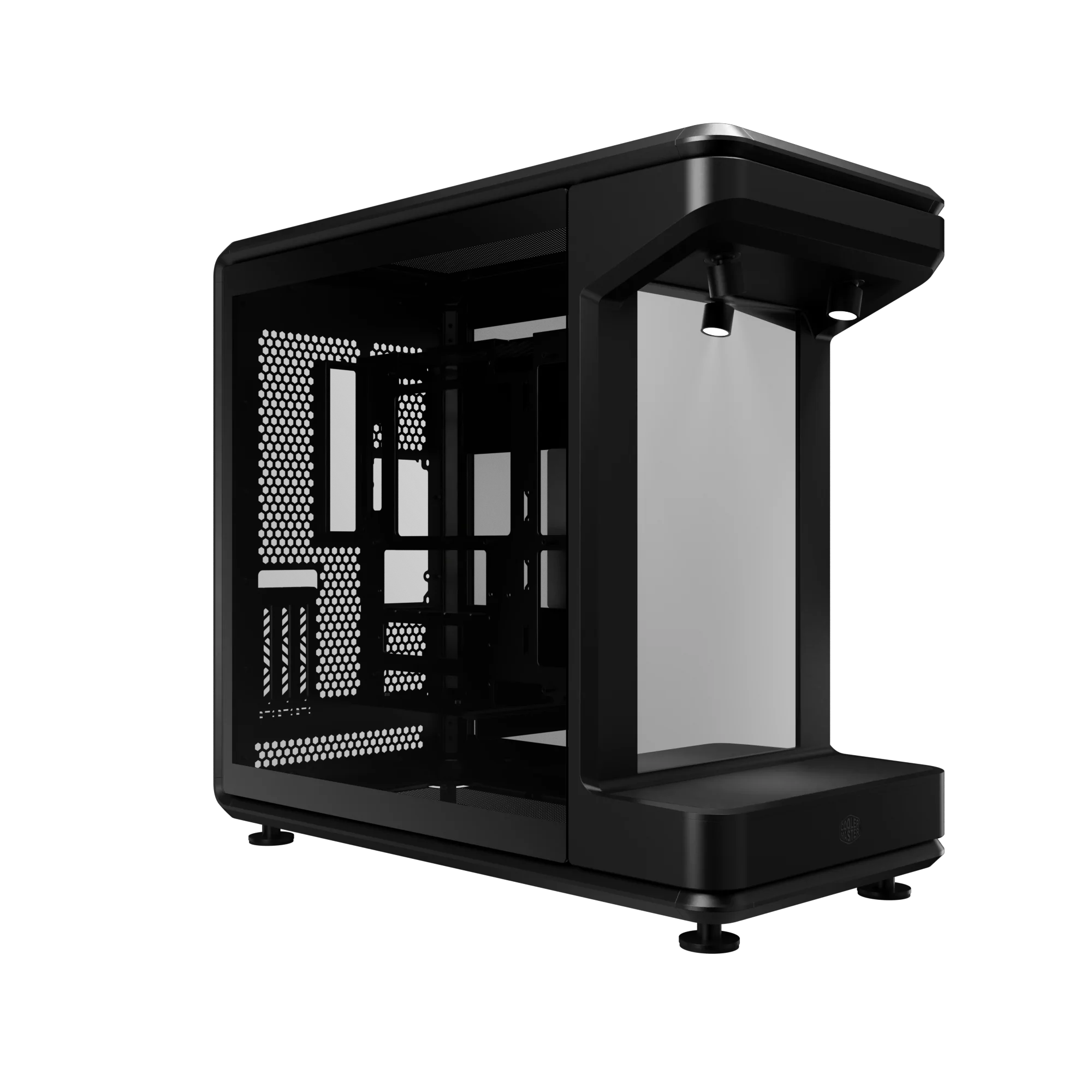

Product Name: MASTERFRAME 360 STAGE MIRROR
Model Number: MASTERFRAME 360 STAGE MIRROR: MF360-KHNN-S01
Color(s): Black
Materials: Exterior SGCC
Materials: Side panel (Right / Left) TG / TG
Dimensions: (L x W x H) 549 x 291 x 581 mm (Incl. Protrusions), 511 x 291 x 581 mm (Excl. Protrusions)
Volume: 86 L (w/o panel, protrusions and feet), 93 L (with panel, protrusions and feet)
Motherboard Support: Mini-ITX, Micro-ATX, ATX, BTF (ATX)
Power Supply Support: ATX
PCI Expansion Slots 3.5
Drive bay support: 3.5" Drive Bays0
Drive bay support: 2.5" / 3.5" Drive Bays (or SSD)1x HDD or 2x SSD
Preinstalled Drive bay: 3.5" Drive Bay (remark Toolfree quantity) / 2.5" Drive Bay(or SSD)(remark Toolfree quantity) 1x HDD or 2x SSD

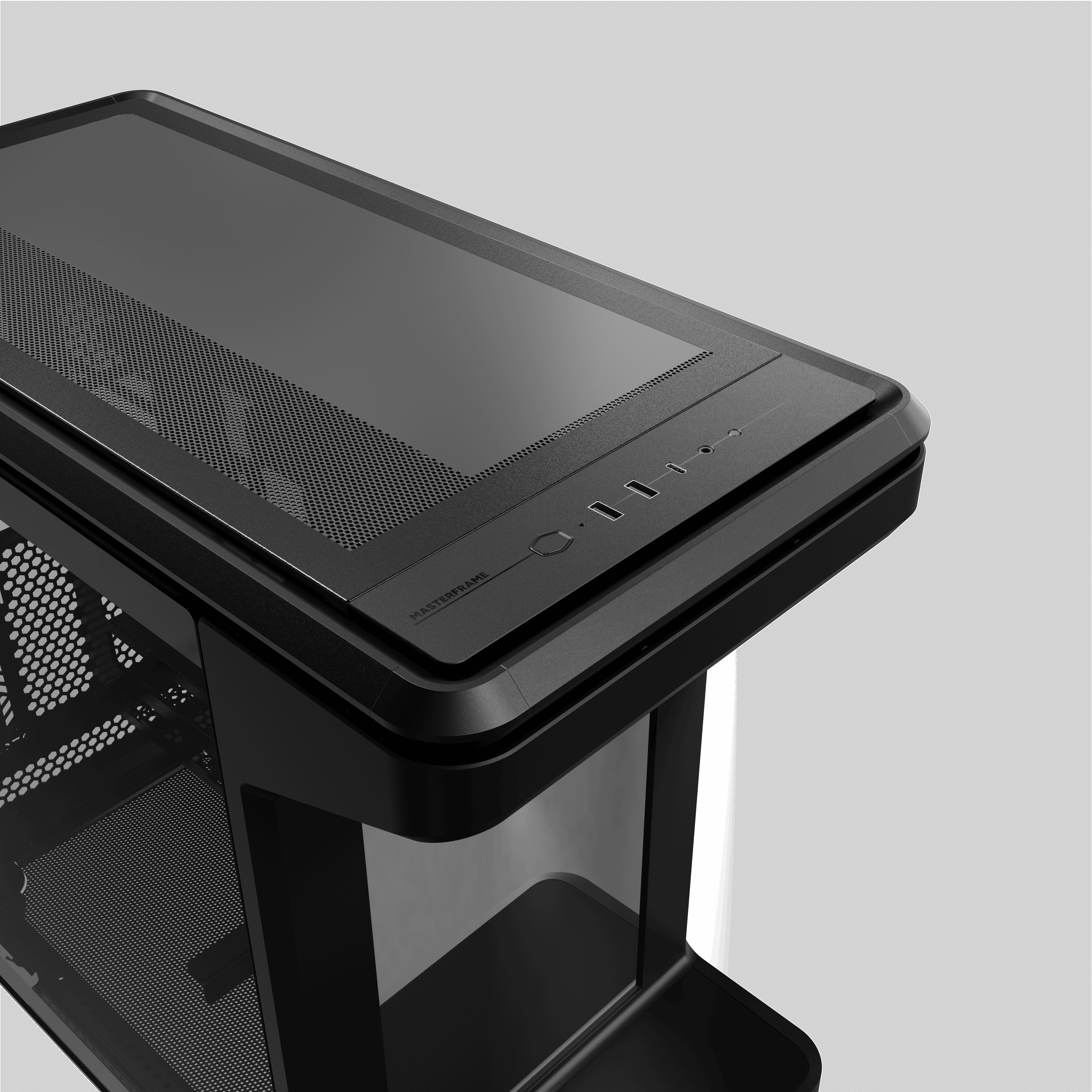

I/O Panel - USB Ports 2x USB 3.2 Gen 1 Type-A 5G, 1x USB 4.0 Gen 2x2 Type-C 20G
I/O Panel - Audio In / Out 1x 3.5mm Headset Jack (Audio+Mic)
Fan Support - Top 6x 120mm, 2x 140mm, 2x 180mm, 2x 200mm
Fan Support - Bottom 6x 120mm, 2x 140mm, 2x 180mm, 2x 200mm
Radiator Support - Top 120 / 140 / 240 / 280 / 360 mm (maximum thickness clearance 75mm)
Radiator Support - Bottom 120 / 140 / 240 / 280 / 360 mm (maximum thickness clearance 75mm)
Dust Filters Mesh Only (Removable Filters)

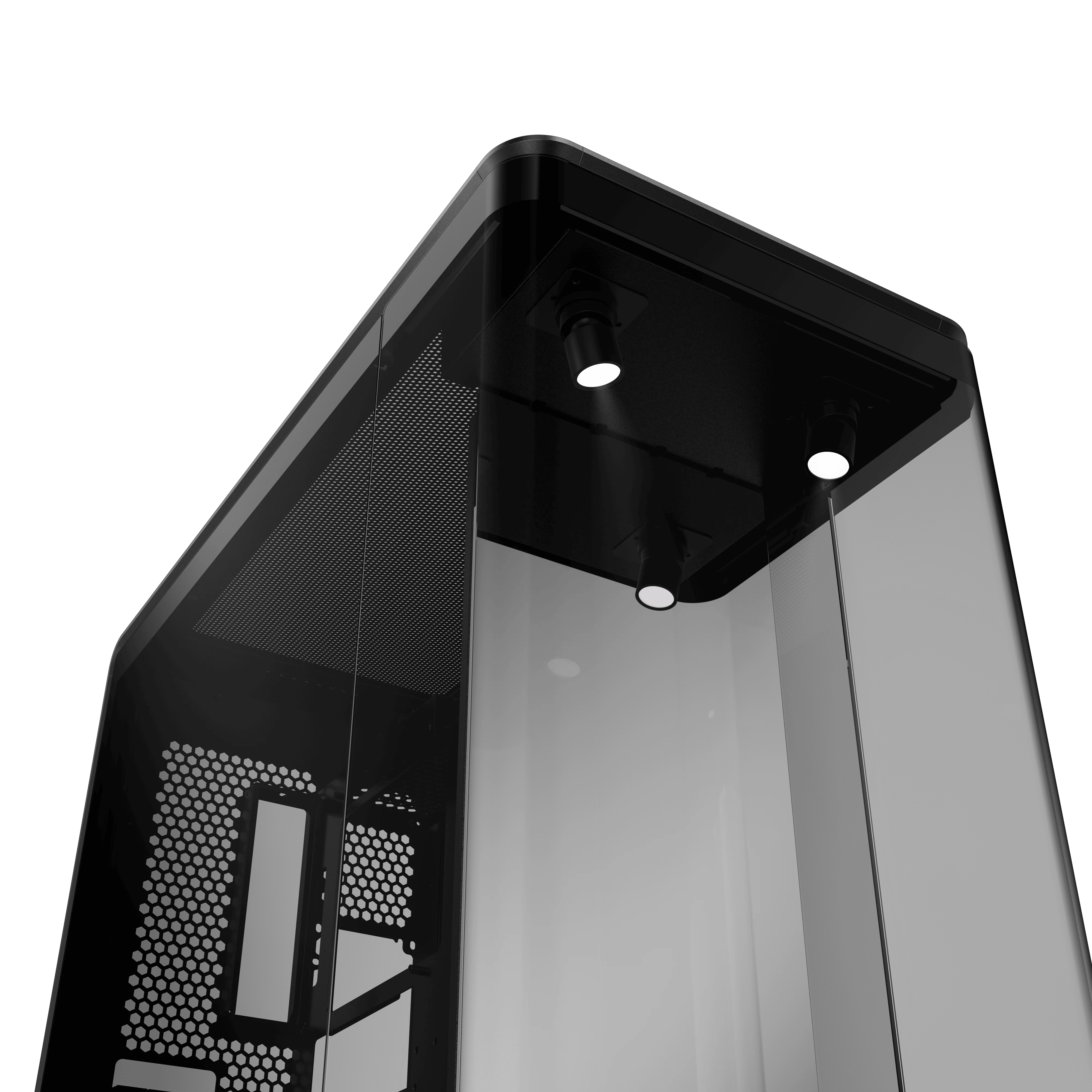

Other electronic components1x PCI-e 5.0 Riser / 2x ARGB spotlight
Maximum Dimensions for Front Collectibles Display (H x W x D)328 x 290 x 110 mm
DIY tank & Pump support: MASTERFRAME 360 STAGE MIRROR: Yes (Left side)
Toolbox: Yes
Clearances - CPU Cooler 145 mm
Clearances - Power Supply 210 mm
Clearances - Graphics Card 430 mm
Cable Routing - Behind Motherboard Tray 110 mm
Warranty: 2 years
Size: Mid Tower
Series: MasterFrame Series

PC Cases

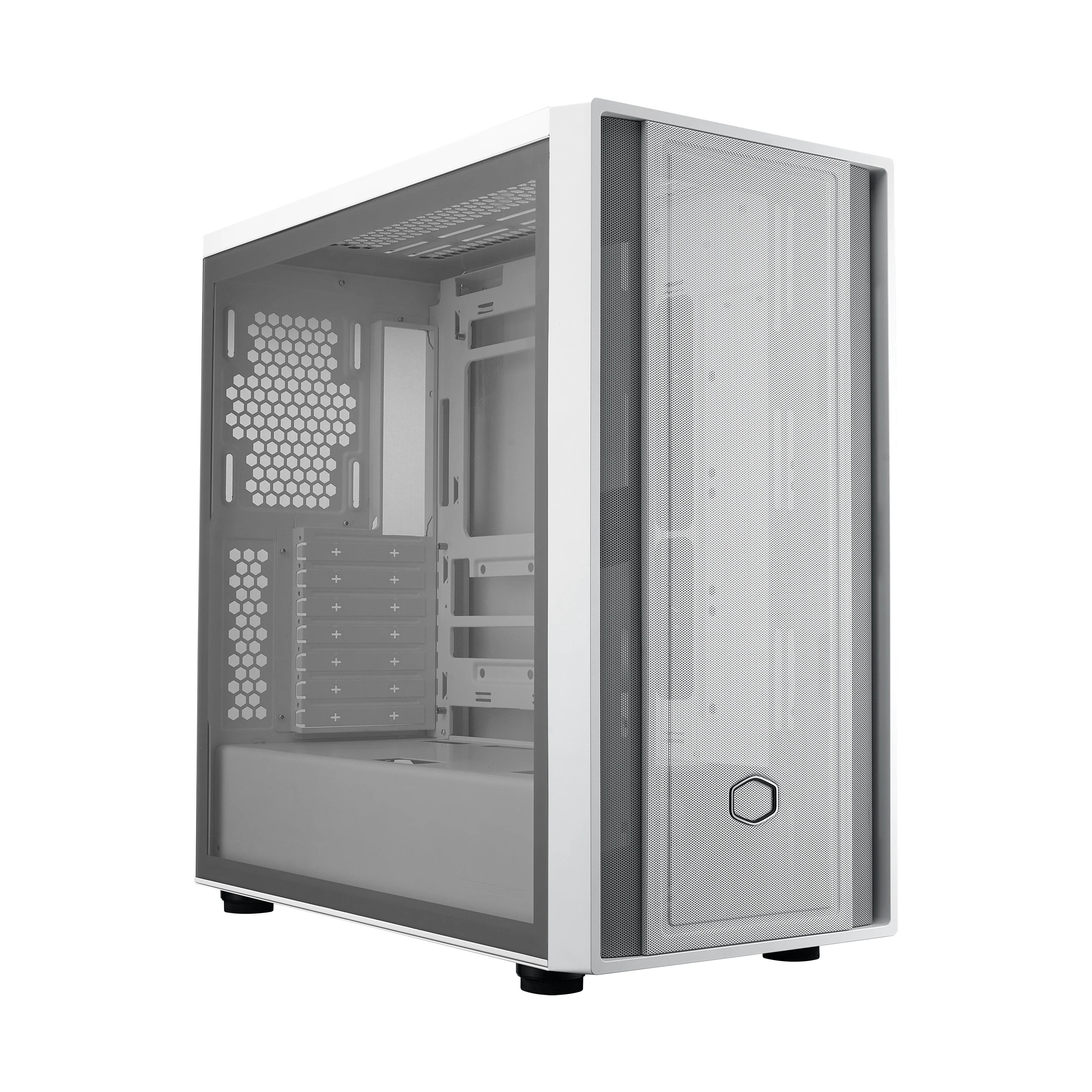

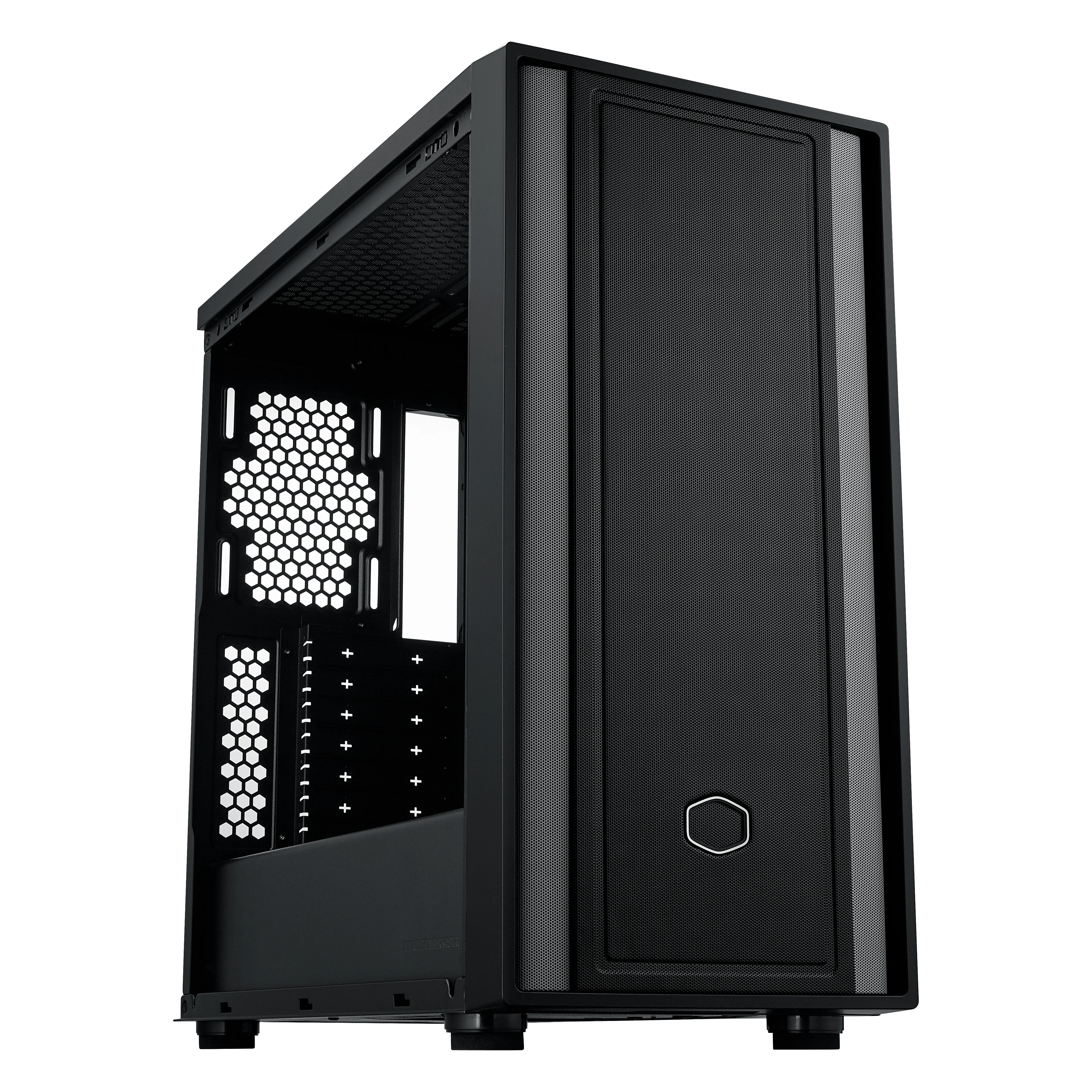

MasterBox 600 Lite

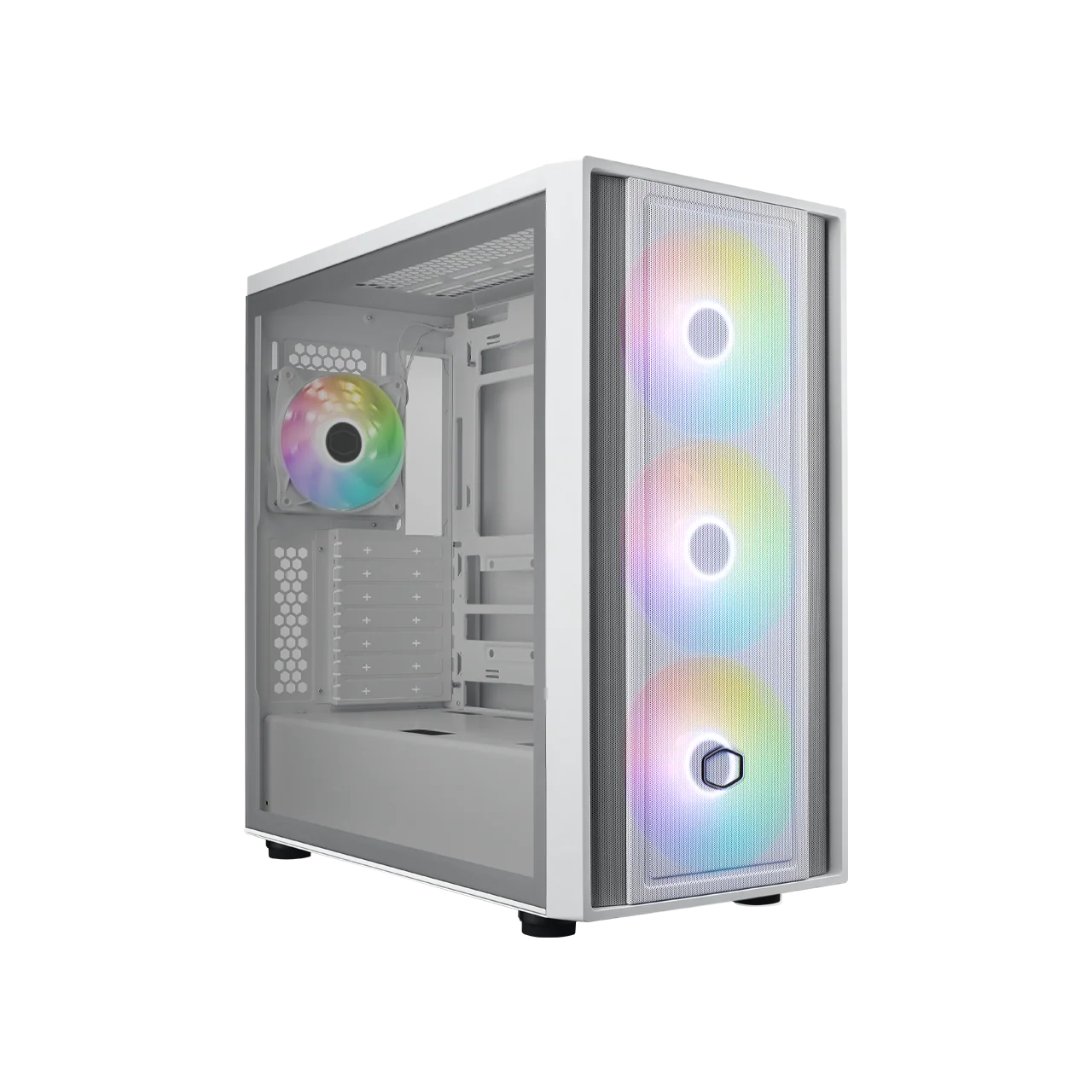

MasterBox 600

MASTERFRAME 360 Stage Mirror

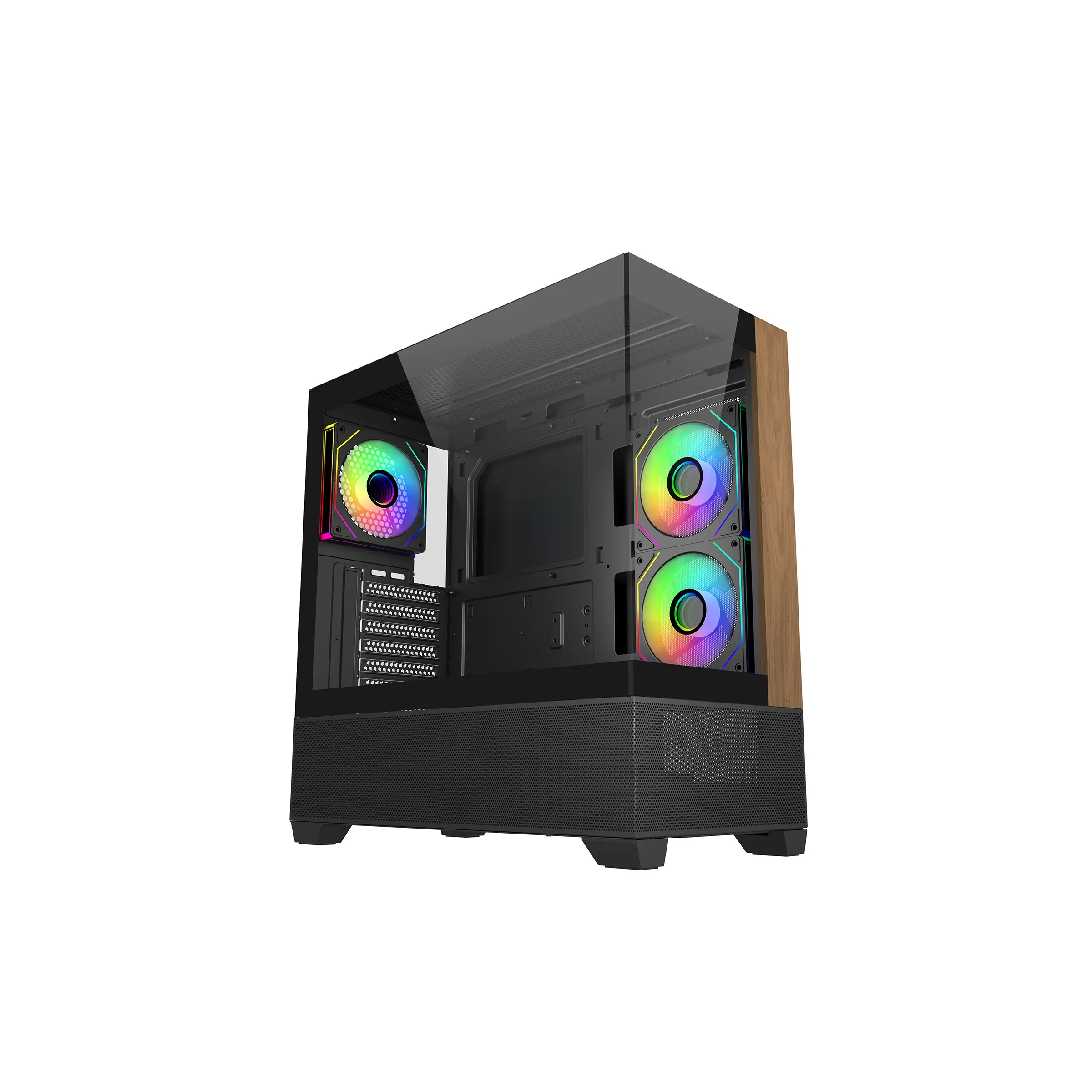

Elite 690 Black

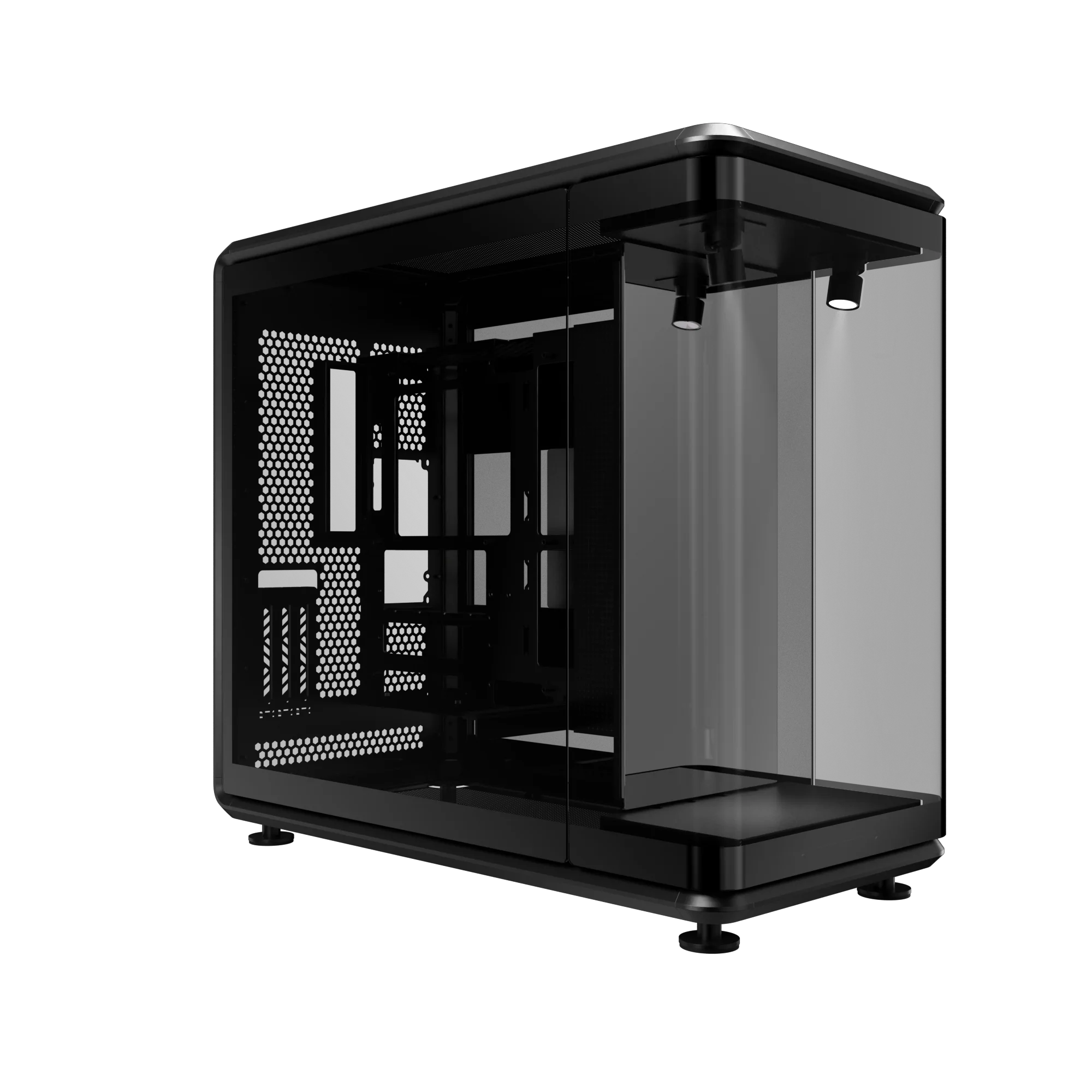

MASTERFRAME 360 PANORAMA

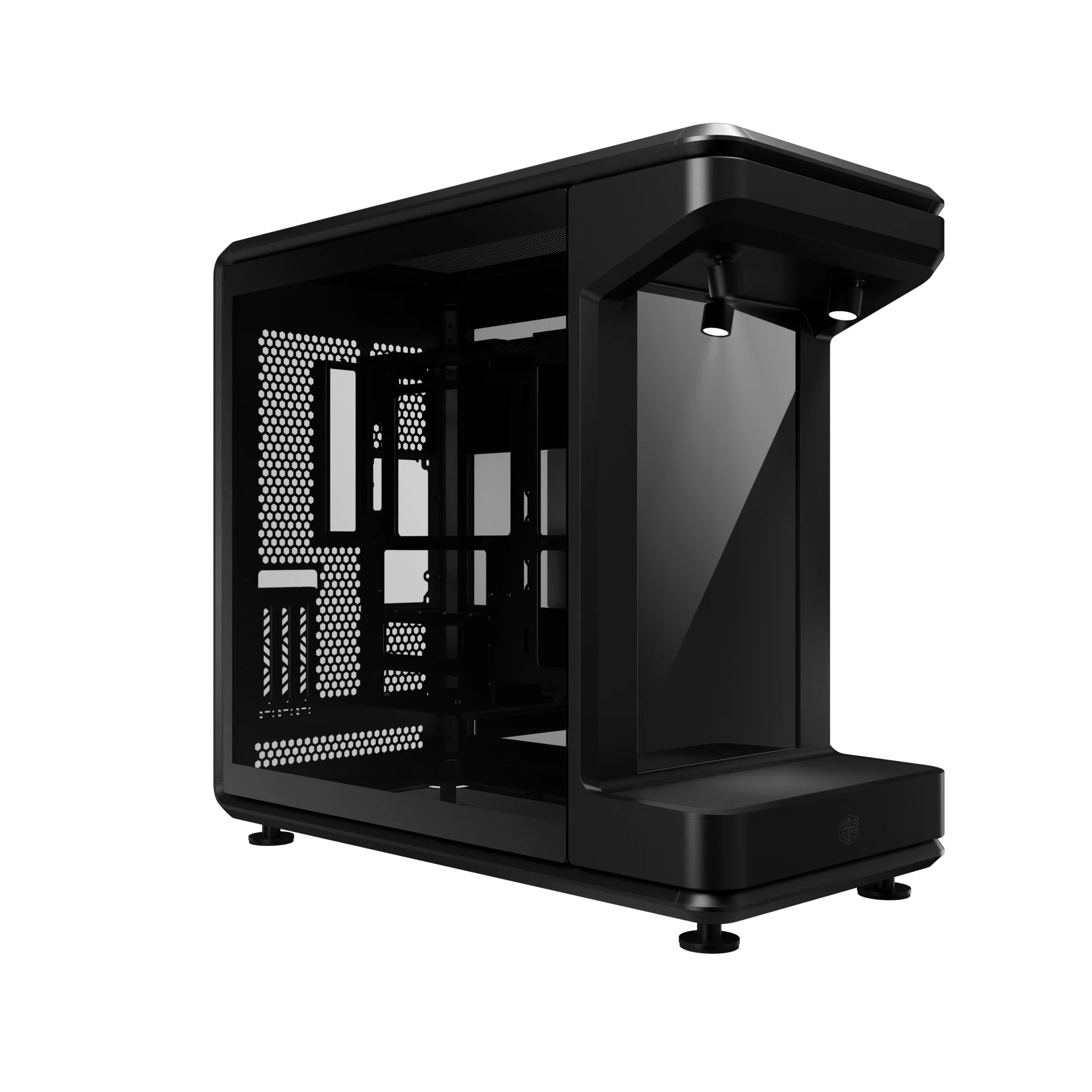

MASTERFRAME 360 Stage LCD
