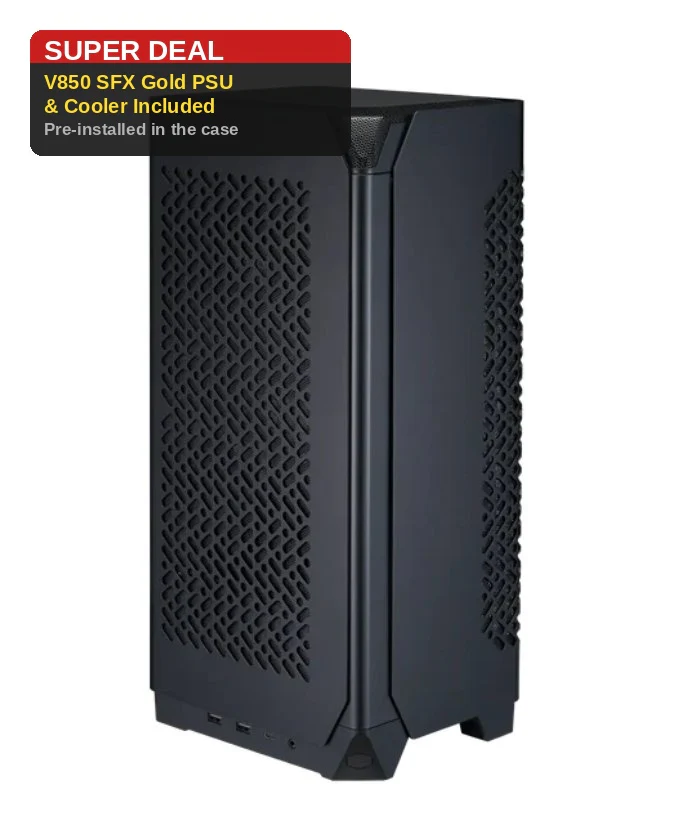

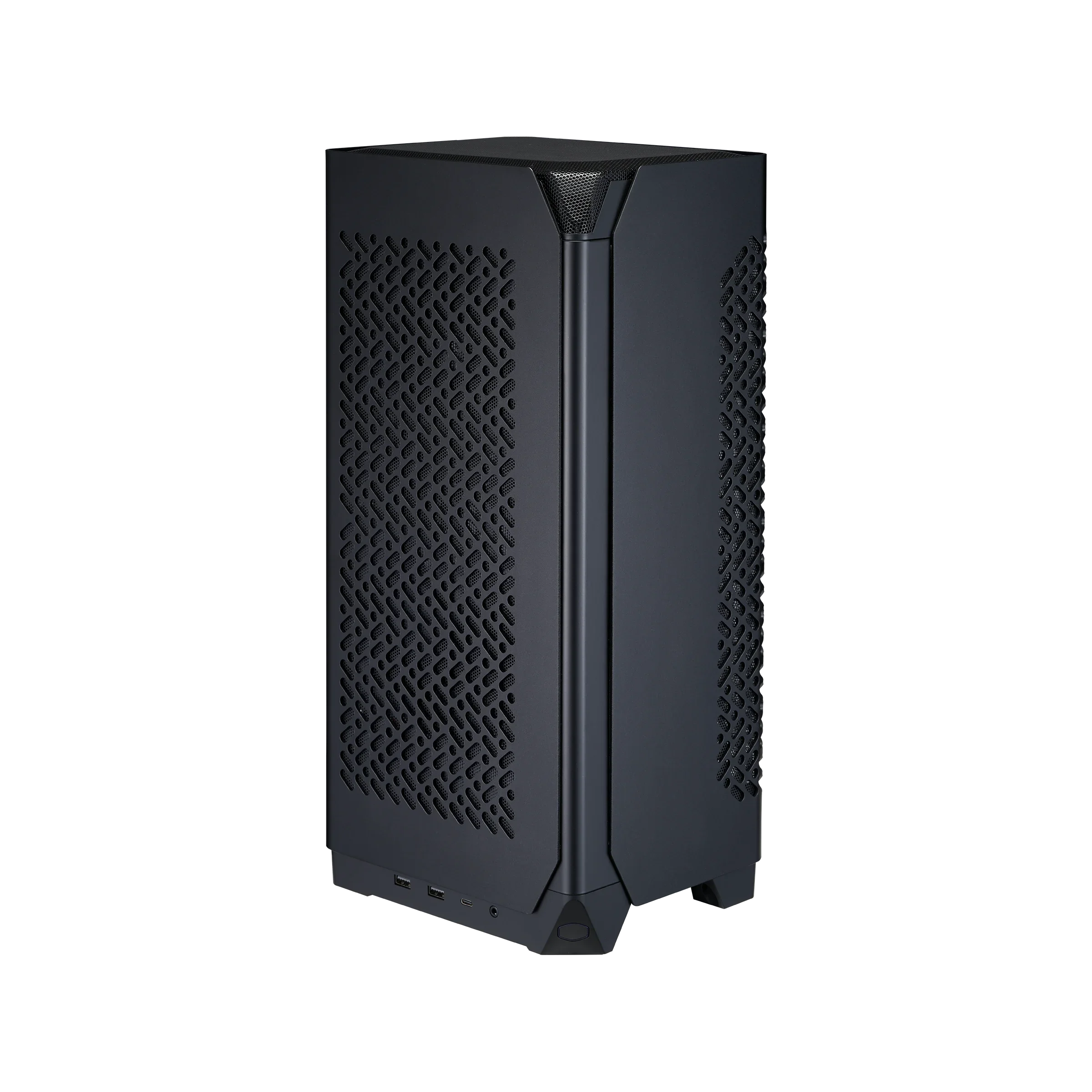

The Compact Case for Powerful PC

Ncore 100 Air S is designed with space-saving and performance in mind. With its small footprint and minimalistic design, Ncore 100 Air is versatile for gamers and content creators. The Ncore 100 Air offers ample space for the latest-generation GPUs, while its thermal layout ensures efficient airflow for optimal cooling.

PREMIUM ALUMINUM PANEL

An anodized aluminum shell makes the Ncore 100 Air stand out as a desktop work of art.

ULTRA-SMALL FOOTPRINT

The Ncore 100 Air is super compact, with a footprint about the size of a small booklet.

EXTENDABLE FRAME DESIGN

The Ncore 100 Air has a compact volume of just 14.7L; however, its frame is designed to expand up to 16.4L when needed.

OPEN AND TOOLLESS FRAME DESIGN

Based on Cooler Master’s ‘Make It Yours’ and staying true to our audience, the open frame design make it easy to build or upgrade the PC. Even the cover features tool-less removal for maximum accessibility.

Specifications

Product Number Color Black:
NR100-KNNN85-SA0
Materials - ExteriorSteel, Plastic, Aluminum
Materials - Side PanelAluminum
Motherboard SupportITX
Graphic Card SupportTriple Slot 336 mm length and 140 mm height (PCIe slot can be adjusted for 356 mm GPU length)
Expansion Slots2x PCIe Slot Mounting
Drive Bays - 2.5" SSD1
I/O Panel - USB Ports2x USB 3.2 Gen 1 Type-A, 1x USB 3.2 Gen 2x2 Type-C
I/O Panel1x Audio Combo (Audio In / Out 3.5mm)
Clearances - CPU Cooler50 / 70mm
Clearances - Power Supply100mm
Clearances - RAM50 / 70mm
Clearances - Graphics Card50mm CPU Cooler: 337 x 62 x 180mm / 357 x 79 x 180mm (expansion) (max. space incl. GPU power connector), 70 mm CPU Cooler: 337 x 42 x 180mm / 357 x 59 x 180mm (expansion) (max. space incl. GPU power connector)
Pre-installed Fan(s) - Top120mm CS120 PWM Fan (max. 1200 RPM)
Pre-installed Fan(s) - Rear120mm CS120 PWM Fan (max. 1200 RPM)
Dust FiltersSide panels
Cable Routing - Behind MB Tray11mm
Power Supply SupportSFX
Included Accessories1x 240 PCIe 4.0 x 16 Riser Cable, 1x ATX 3.0 power cable for vertical mount
Volume14.7L / 16.4L (incl. protrusions)
Dimensions (L x W x H)155 x 212 x 449mm / 172 x 212 x 449mm (Incl. Protrusions), 155 x 212 x 425mm / 172 x 212 x 425mm (Excl. Protrusions)
Warranty2 years
SizeMini ITX

Downloads

Product SheetDownload
Product Sheet - Traditional Chinese EditionDownload
ManualDownload
